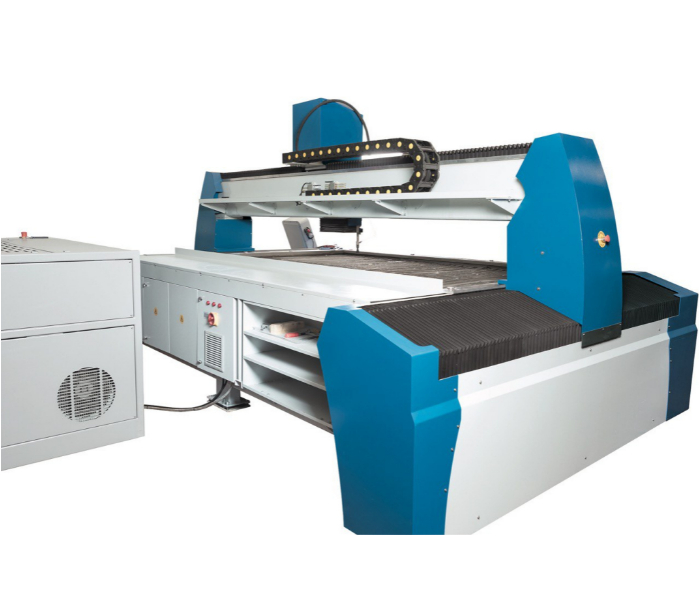

To solve cutting tasks for almost any material
Water-Jet 2010
To solve cutting tasks for almost any material
Water-Jet 2010
Options
001
Cutting with 2 cutting
heads
002
Drilling head
003
Height adjustment with collision
prevention
004
Abrasive tank with a
1000 kg sand capacity
005
Sludge removal system
006
Oil/air cooler
007
Water treatment system
008
Water addition for silicate
stability
009
Starter set
010
Water level control
011
Special steel cutting pad for
all Water-Jet systems

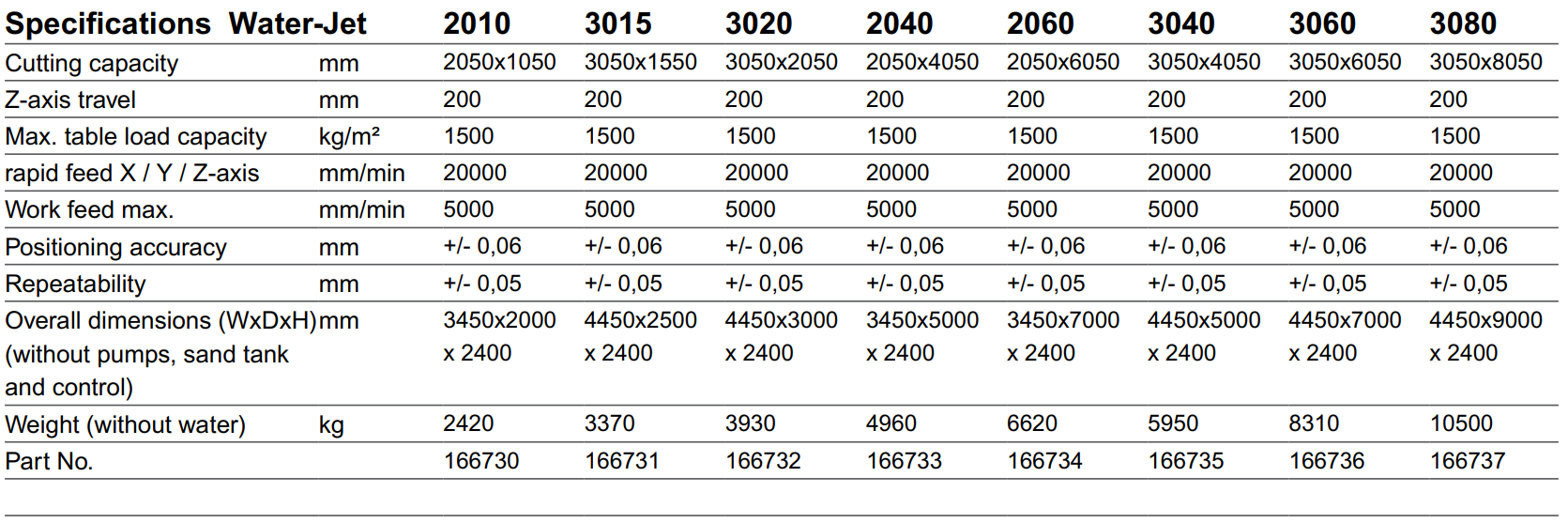

Technical Specs
Product Details
Standard Equipment
Technical Specs
Product Details
- Very rigid machine bridge with dual-sided drive
- Stable machine frame construction (side parts made as hardened and milled monoblocks without internal stress, secured with dowels during machine installation)
- High-quality linear guides on all axes
- Ground and hardened helical rack and pinion gears
- Reliable digital servo drives
- Moving parts are fully protected from water and dust
- Centralized lubrication system with electronic control
- Separate cutting table with high load capacity
- Removable mesh made of galvanized plates (standard) or stainless steel plates (optional)
- Efficient CNC control system
- Intuitive CADCAM software
- Slanted control panel attached to the machine frame
Standard Equipment
- Separate worktable with a grid made of galvanized plates

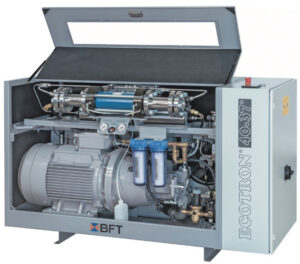

- BFT Ecotron® 40.37+ high-pressure pump with soundproof casing and proportional control valve

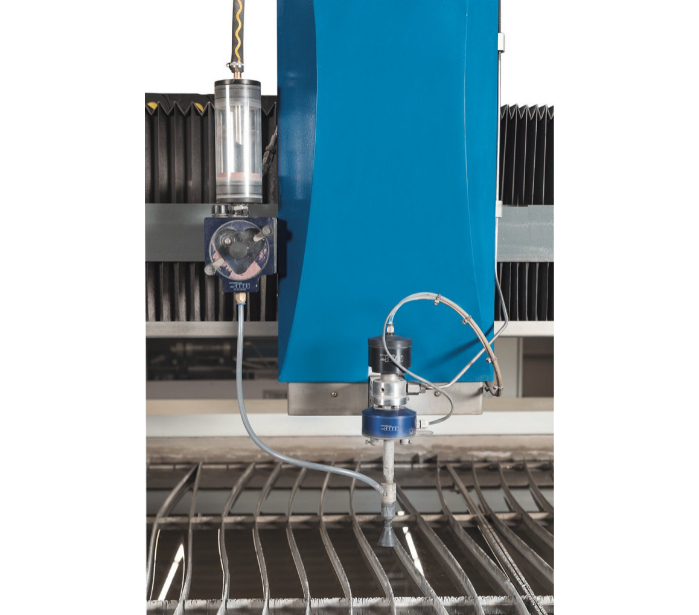

- Abrasive feed system
- Abrasive tank with a 200 kg sand capacity
- Mounted slanted control panel
- Electronic handwheel
- CNC system
- CADCAM software
- Operating and programming manual
